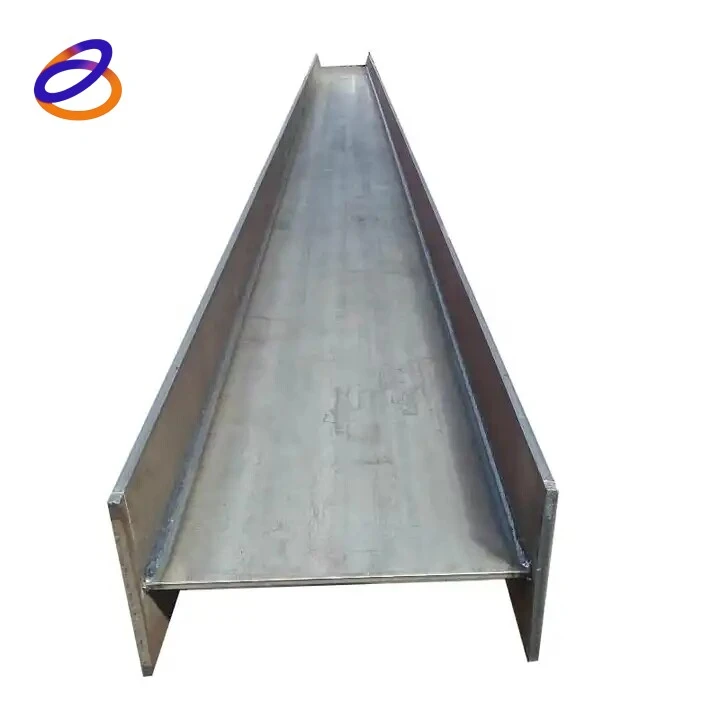

H-Beam

H-beam is a kind of Economic section steel, which sectional area distribution is more optimized, the ratio of strength to weight is more reasonable, Mechanical properties of section is more better.It is developed from the I-section steel optimization of a better section mechanical properties of the economic section steel, because its section is same as the English letter "H" ,so be named as H-Beam. Because the various part of H-beam is arranged at right angles, H-beam has the advantages of strong bending resistance, simple construction, cost saving and light structural weight in all directions, so it has been widely used.

Product Description

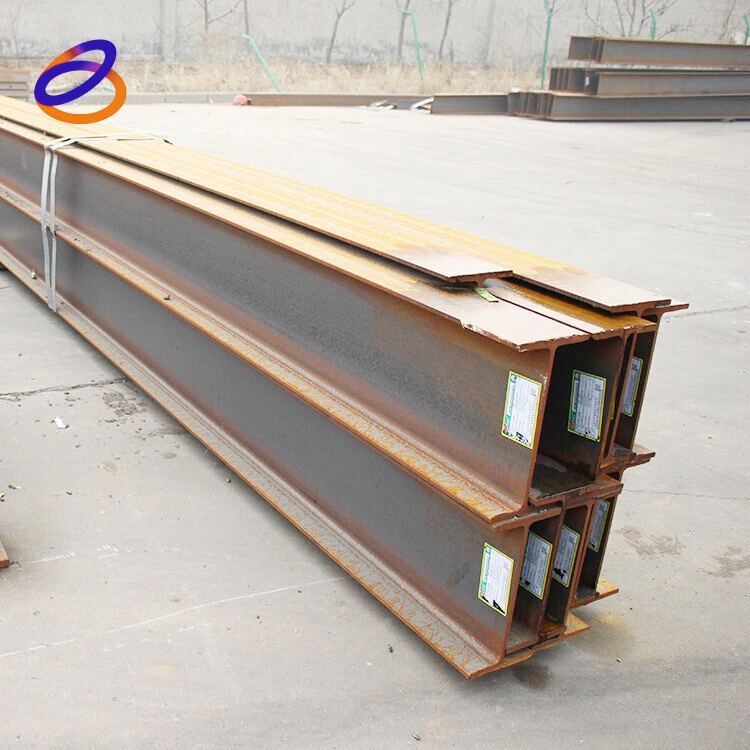

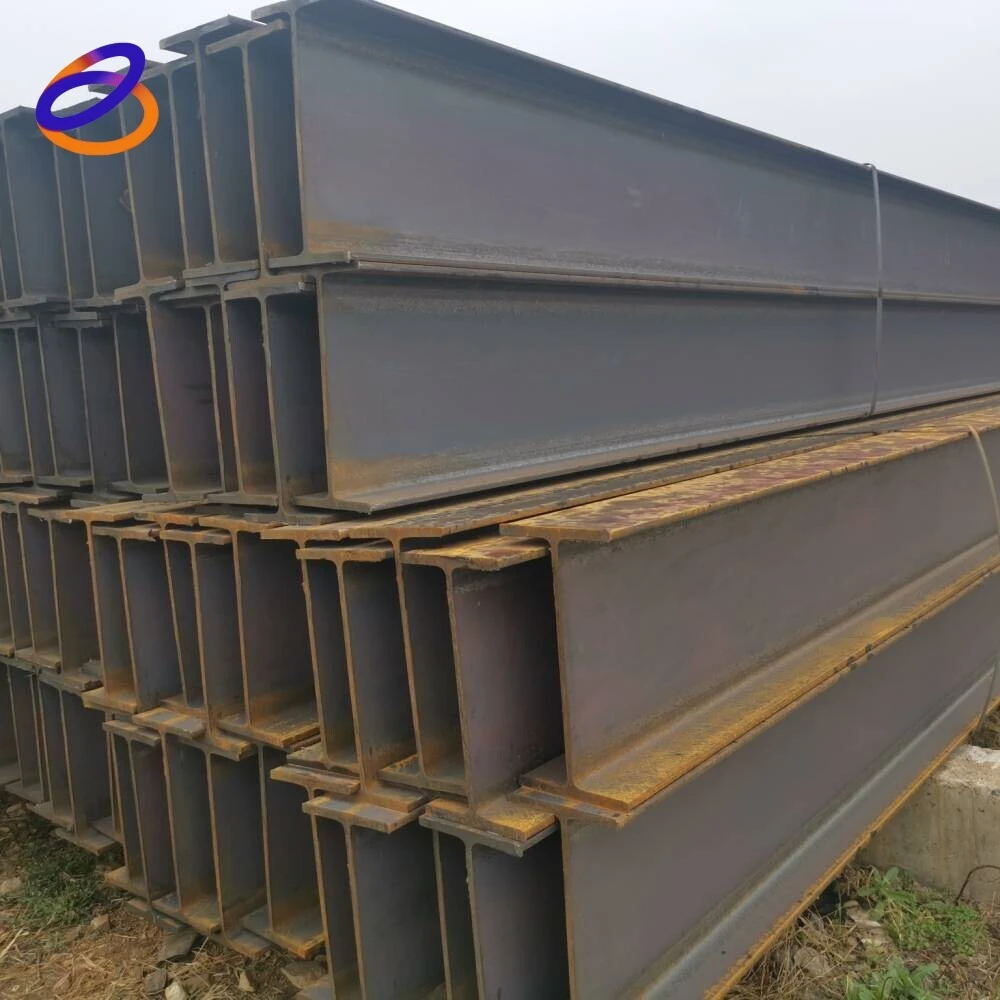

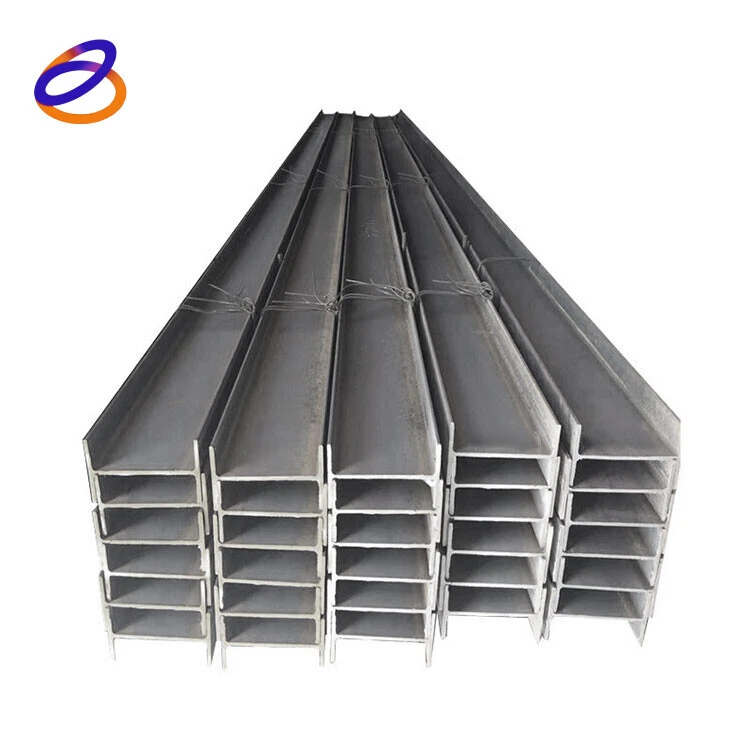

Product Show

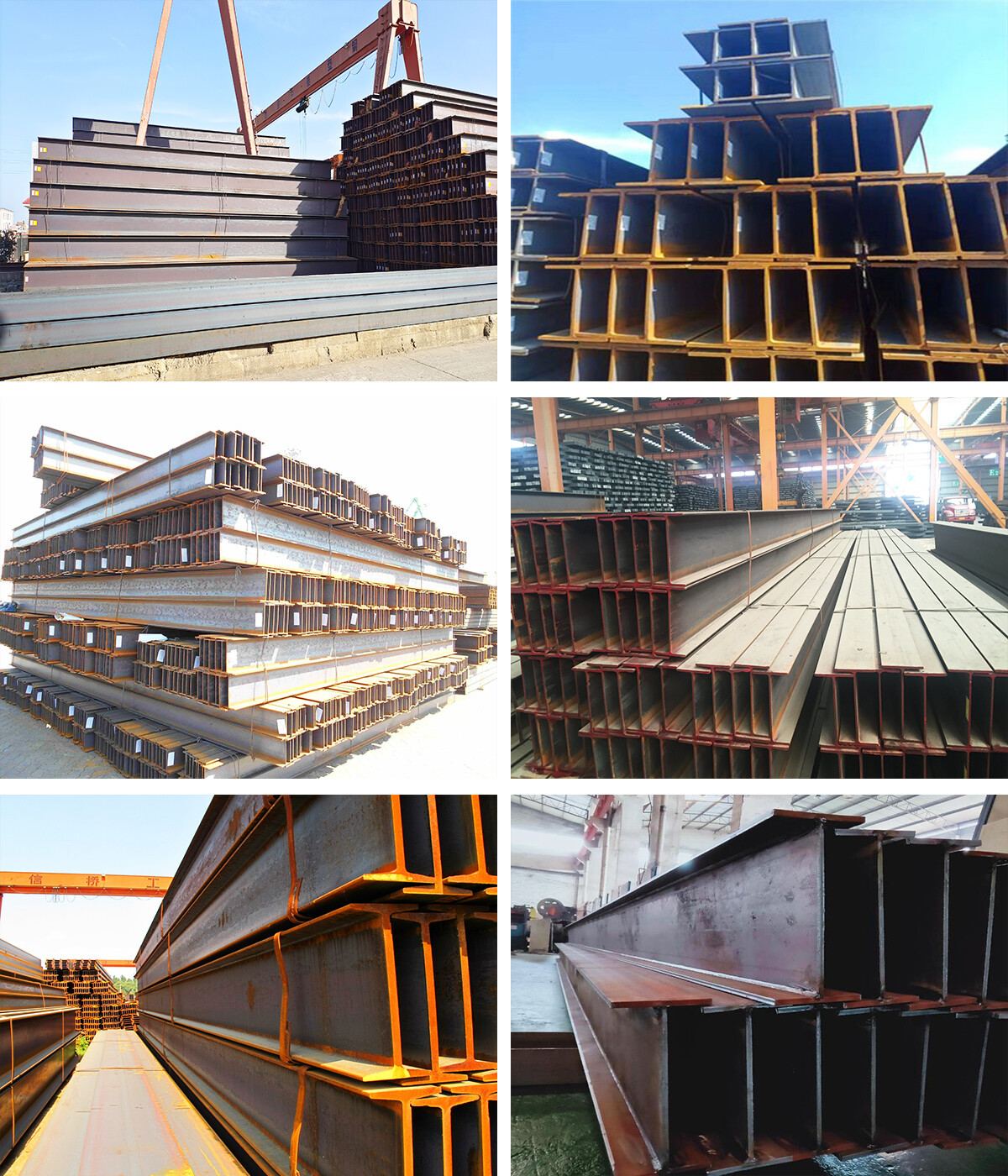

Factory Tour

FAQ

H-beam as a new type of economic construction steel. The section shape of H-beam steel is economical and reasonable, the mechanical properties are good, and the elongation of each point on the section is uniform and the internal stress is small. Compared with the ordinary I-beam steel, it has the advantages of more large section modulus,more light weight and more saving metal, which can reduce the building structure by 30-40%. And because its legs inside and outside parallel, leg end is a right Angle, assembled into components, can save the workload of welding and riveting up to 25%. It is often be used in large buildings (such as workshops, high-rise buildings, etc.), as well as Bridges, ships, lifting and transportation machinery, equipment foundation, supports, foundation piles, etc.

The National standard of Hot-rolled H-beam (GB/T11263-1998) divides H-beam into narrow flange, wide flange and steel pile, and their codes are hz, hk and hu respectively. Narrow flange H-beams are suitable for beams or flexural members, while wide flange H-beams and H-beams are suitable for axial compression members or flexural members.

Material	A36、St37、S235J0、S235J2，St52，16mn，S355JOQ195,Q215,Q235B,Q345B,S235JR，S355JR，S355，SS440，SM400A，SM400B
production range	A572,GR50,GR60,SS540H100100-H400400H15075 -H900300
Length	6m, 9m, 12m or as customerrequirement
Technology	Hot rolled,welded
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface	Galvanized, paint；or as your request
Supply ability	2000Ton/day
Business type	Manufacturer
Certification:	ISO, SGS，BV
Application	widely used in building structure and engineering construction, such as room beam,ship beam, industrial furnace, etc.
Loading port	any port in China
Packing	standard export packing or as your requirement
Payment Terms	T/T, L/C at sight,West Union,D/P,D/A,Paypal

Q: What are your company's main products?
A: We are professional in carbon steel/stainless steel/galvanized steel sheets, pipes, coils and bars etc. We can also provide a wide range of steel products.

Q: How long is your delivery time?
A: For stock, we can deliver goods within 1-5 days. For customized sizes, it usually takes 7-20 days.

Q: Do you provide samples ? is it free?
A: We can provide samples for free, but freight will be paid by customers.

Q: Do you have stock for regular specification?
A: We have enough stock and can deliver in short time for these sizes.

Q: How can you guarantee the quality?
A: We can take pictures or videos as your request, or you can entrust a thirty party to inspect.

Q: Can we have a trial order with small quantity?
A: Yes, you can. We welcome any orders, even a sample.
